- 1″ format sensor
- Latest global shutter pixel architecture
- High dynamic range
- Low noise
- 12 bit RAW
- Size only 35 x 35 x 76 mm

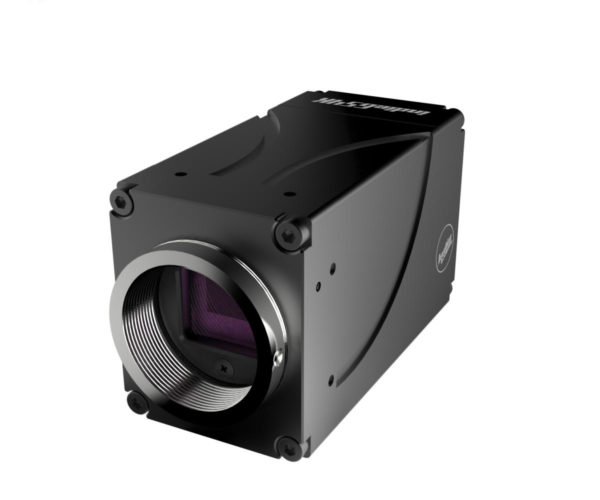

indieGS4K our latest amazingly small RAW camera incorporates a high-grade 1″ CMOS global shutter sensor of the latest generation with 12 stops dynamic range and low noise. The system comes as a complete package with its own custom recorder.
The camera measures only 35 x 35x 76mm and weighs 150g. The modular design and a selection of durable and compact accessories make the indieGS4K the perfect tool for every shot that demands the highest possible image quality, minimal weight and tight dimensions. In addition, the camera enables you to shoot the roughest action footage free from rolling shutter issues.
The smooth integration of indieGS4K CinemaDNG footage into almost any post production workflow makes it a versatile tool for feature films, high-end broadcast productions, commercials and documentaries. The camera comes with a back focus adjustable C-mount and PL-mount adapters are available as well.
Tech specs
Sensor | Size | 1“ |
---|---|---|
Resolution | 4096 x 2160 | |
Readout | Progressive | |
Shutter | Global | |
Pixel size | 3.45 µm | |
A/D converter | 12 bit / 10 bit | |
Sensitivity | 200 ASA | |
Genlock | Custom | |
Mount | C-mount | Standard |
PL-mount | Optional | |
Modes | RAW, 12 bit | 4096p23.98 / 4096p24 / 4096p25 |
RAW, 10 bit | 4096p23.98 / 4096p24 / 4096p25 / 4096p29.97 / 4096p30 |
|
Interfaces | Video | Custom |
Power & control | LEMO | |
Additional connector | LEMO | |
Status LED | RGB | |
System-Features | Gamma | Standard & custom LUTs |
White balance | Auto / manual | |
Colour Space RAW | CinemaDNG RAW RGB 4:4:4 | |
Profiles | Auto start with last settings | |
Timecode | REC RUN TC embedded in CinemaDNG | |
Power | Voltage | 12 – 19 V DC |
Consumption | 35 W | |
Dimensions camera | Size w/o lens | 35 x 35 x 76mm |
Weight w/o lens | Approx. 150g (5.3oz) | |
Dimensions recorder | Size | 205 x 135 x 70mm (8.07″ x 5.31″ x 7.75″) |
Weight | Approx. 1,5kg (3.3lb) | |
Environmental | Operation | 0 – 50 °C, 20 – 80 % RH |
Storage | -30 – +60°C, 30 – 95 % RH |
Demo Footage
Click HERE to download sample CinemaDNG source files as well as H.264 sample clips shot during day and night.
Or watch them directly on Youtube. Make sure to change the settings to 4K in order to enjoy the best image quality.
